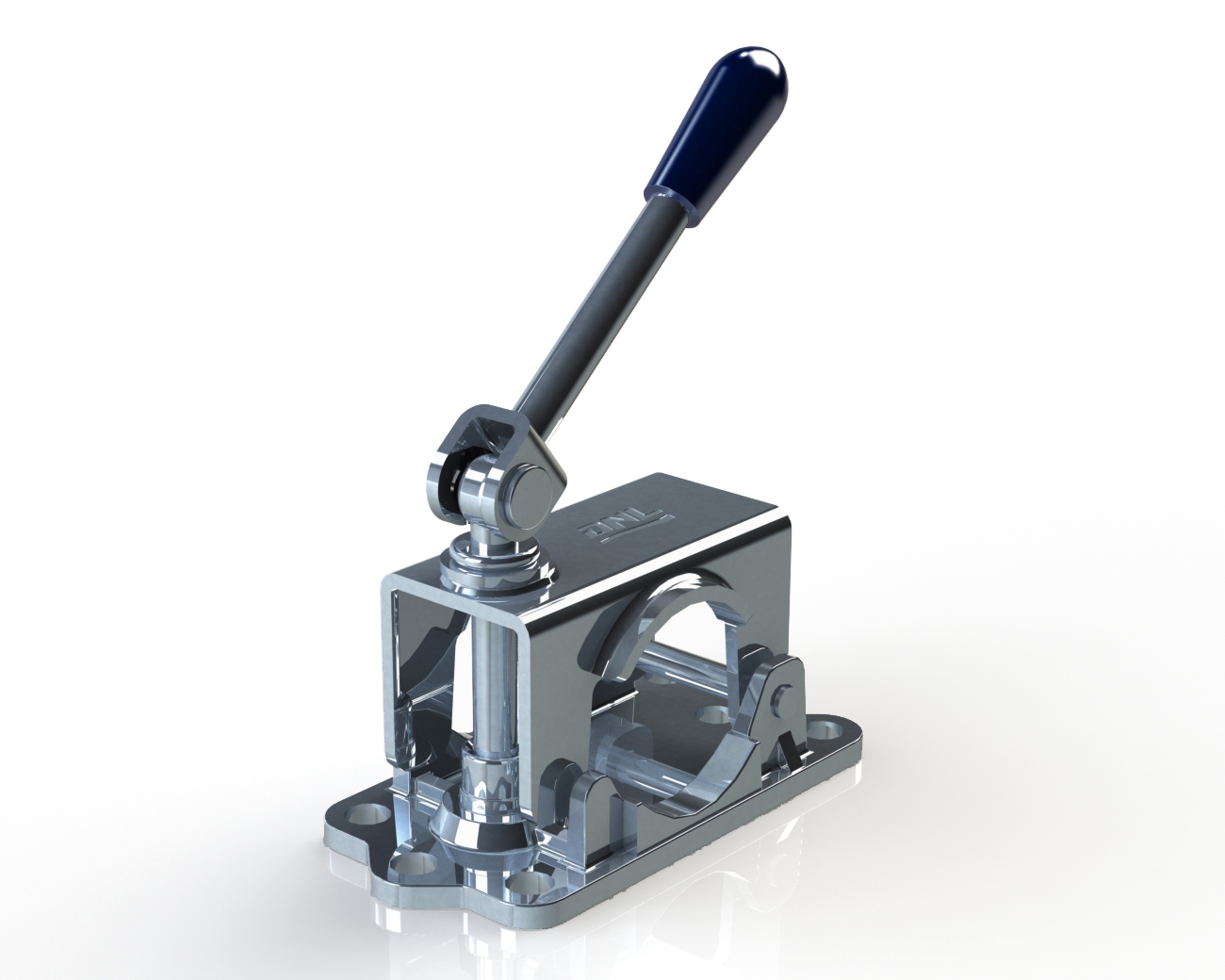

CLA48CF
48mm Pressed Clamp Bracket with casting bottom, foldable handle
Specifications
Features
Application
Download
Specifications

Application: |
48mm Round Tube |
Base Plate: |
Cast iron |
Mounting Holes: |
6 holes |
Load Capacity: |
250kgs |
Weight of Unit Piece: |
0.88kgs |
Finishing: |
Zinc Plating |
Packing: |
1000pcs per plywood case (115x81x98cm) |
Features
Pressed by progressive die which ensures stable and high quality.
High quality plating provides excellent appearance and reliable corrosion resistance.
Advanced casting technology ensures high degree of casting for flat bottom.
Application
Download
