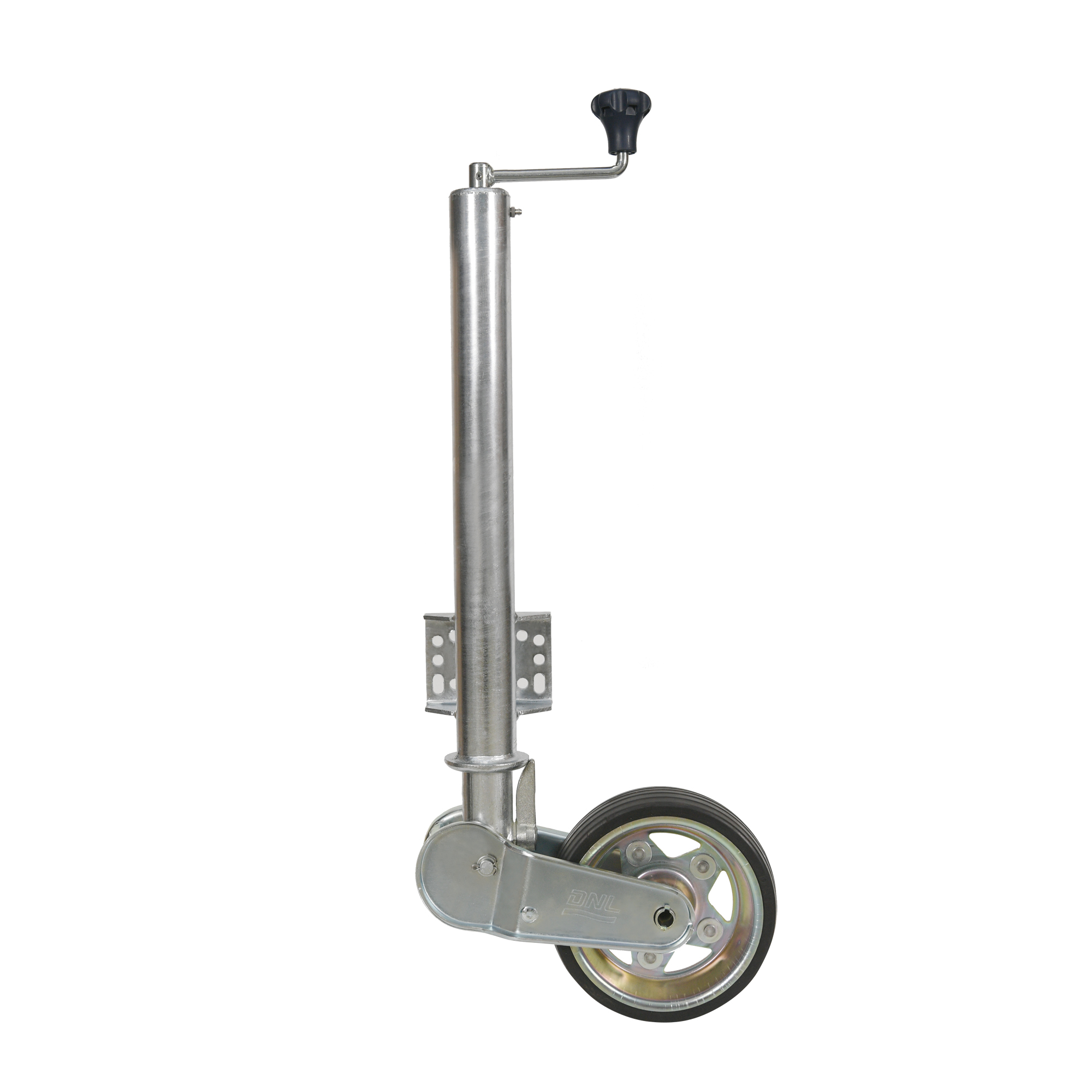

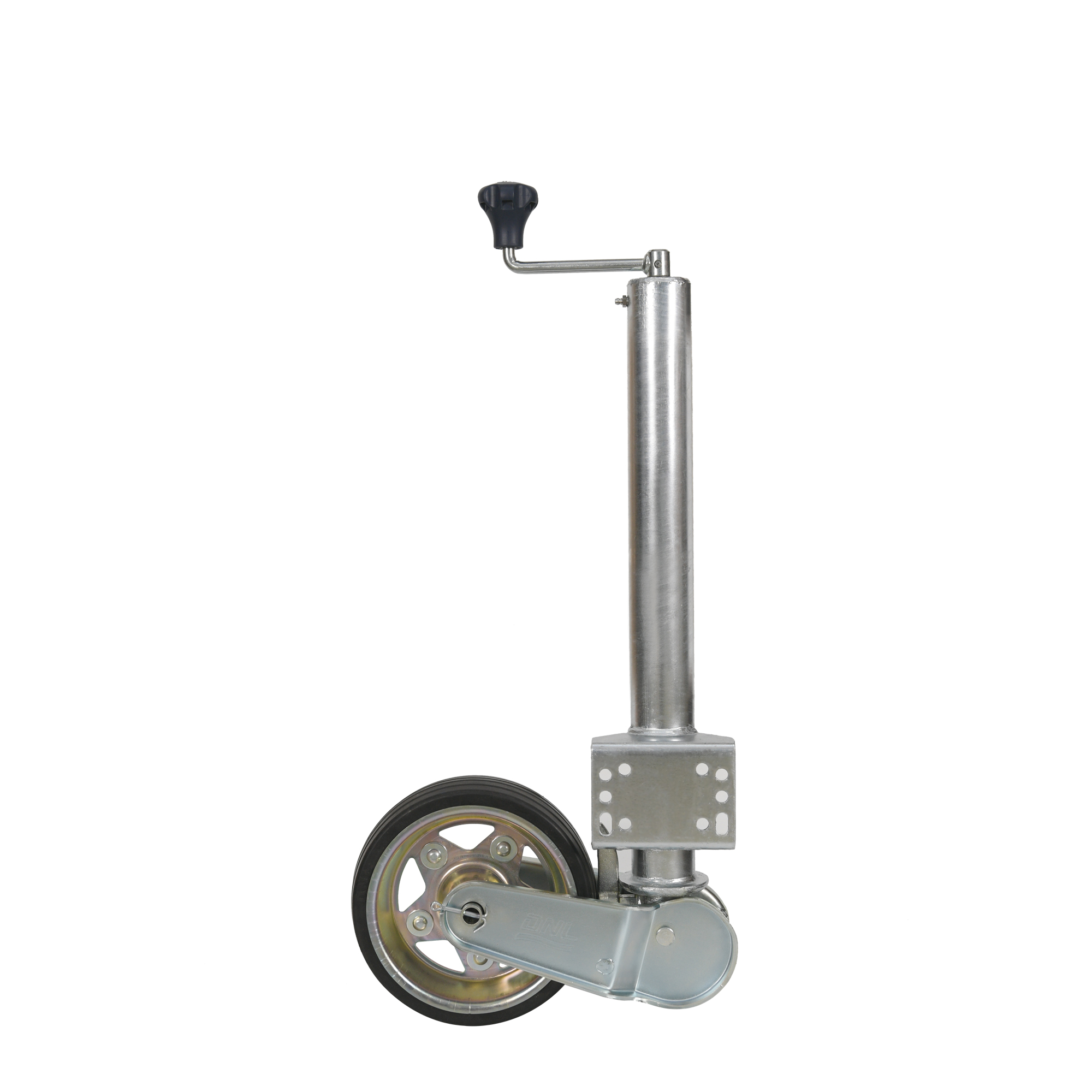

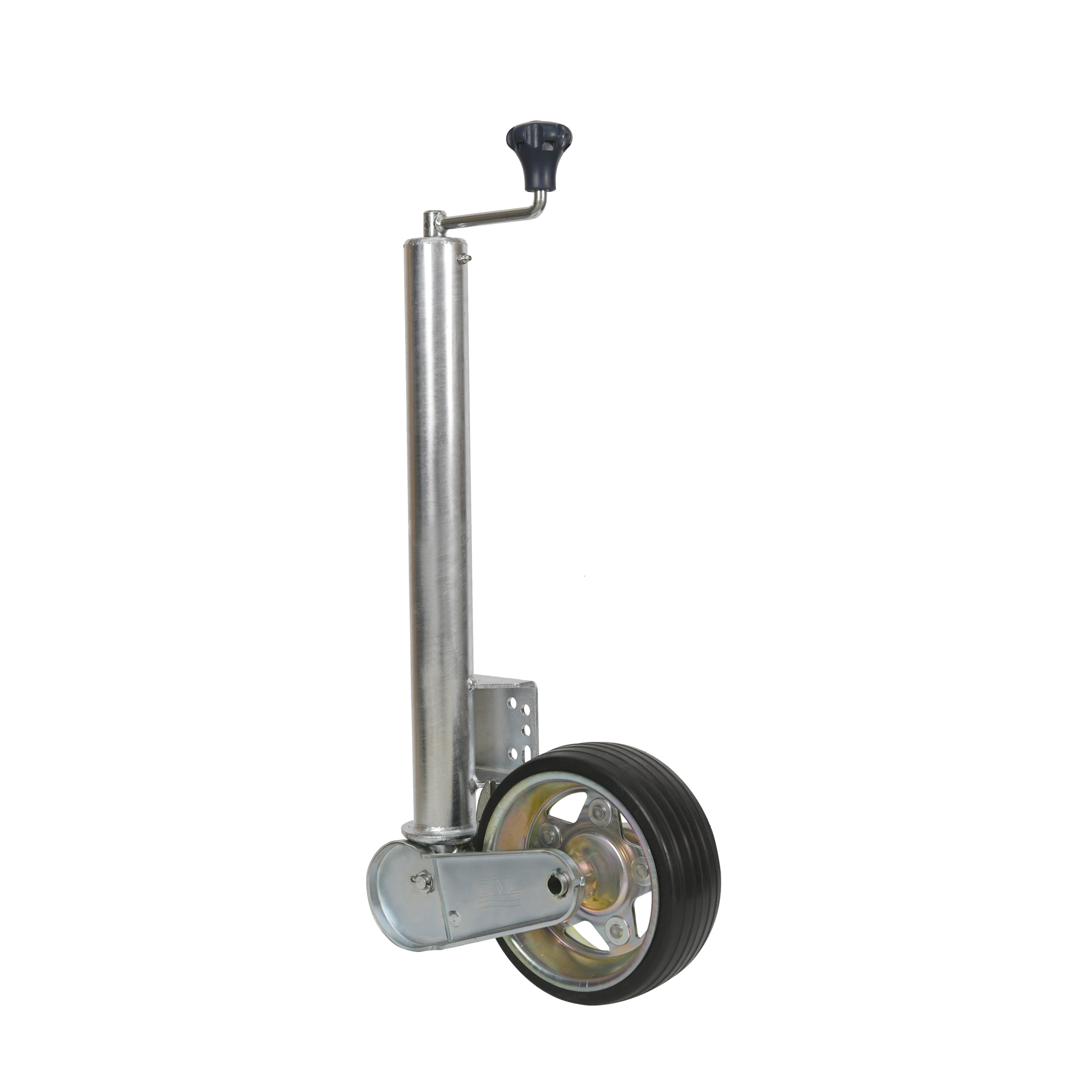

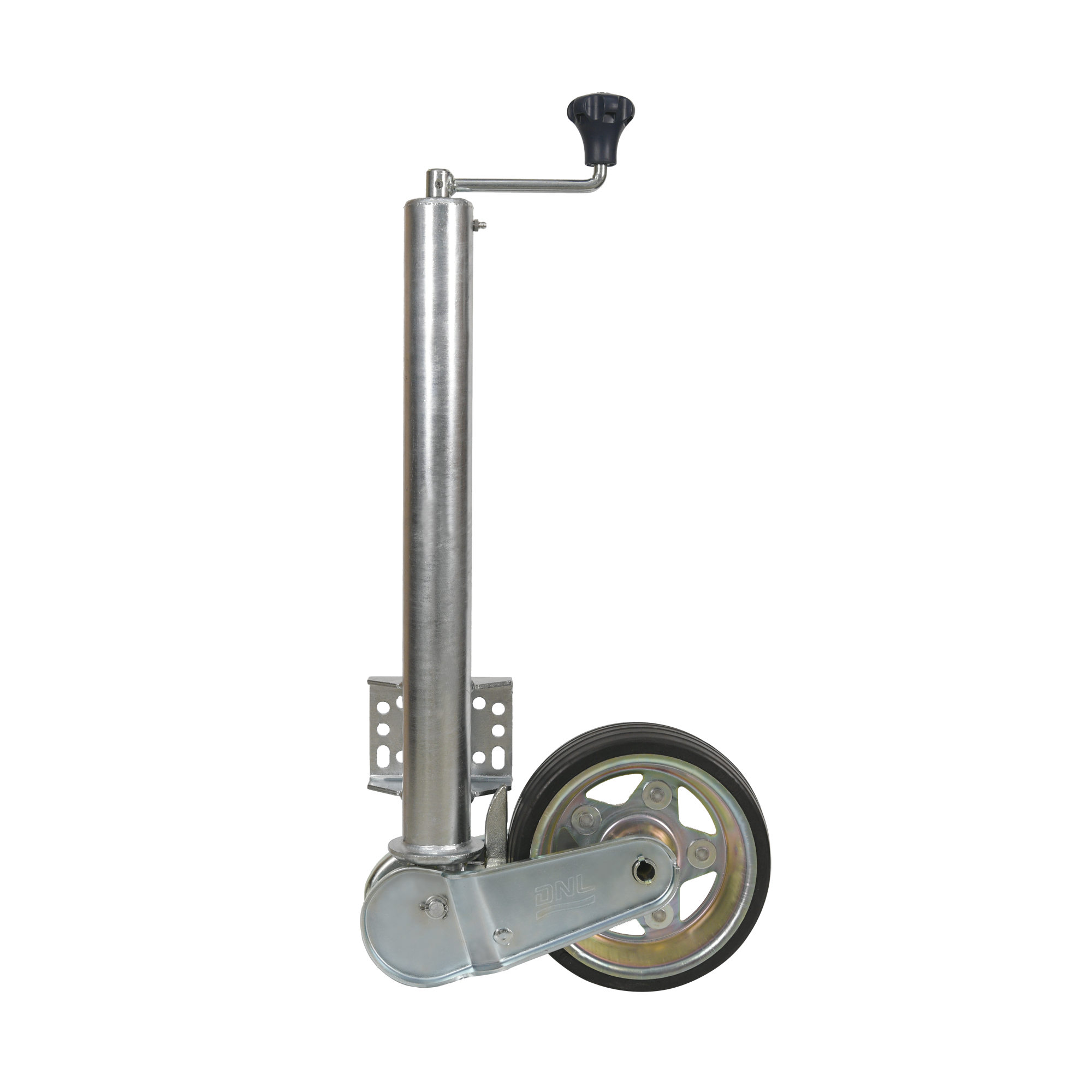

JK60-GB-NR230Z
60mm Jockey Wheel, Hot Dip Galvanized, Automatic Support Shoe, Standard B Type Console, Long Design, 230x80 mm Rubber Wheel
Specifications
Features
Application
Download
Specifications
![](https://www.dnl.net/wp-content/uploads/2023/06/1688119072-JK60-GB-NR230Z-7_副本-scaled.jpg)
Tube Type: |
Φ60mm |
Wheel: |
Steel Rim with Zinc Plating, Solid Rubber Wheel, 200x65mm |
Length of Extension: |
335mm |
Load Capacity: |
350kgs |
Weight of Unit Piece: |
13.3kgs |
Material: |
Mild Steel |
Feature: |
Long Design & Automatic Support Shoe |
Finishing: |
Zinc Plating |
Packing: |
60pcs per plywood case (110x110x107cm) |
Features
Ergonomic knob offers the best experience of operating easily, no feeling of tiredness.
Concise bracket is a bright point of our innovation on this product. Simple but stronger.
Tri-corn rim makes wheel more stable
Application
Apply to: Box trailer, Horse trailer, Flat trailer,Caravan,Construction trailers, Lives stock trailer, Transportation Trailer, Commercial trailer, etc.
Download
