Specifications
|

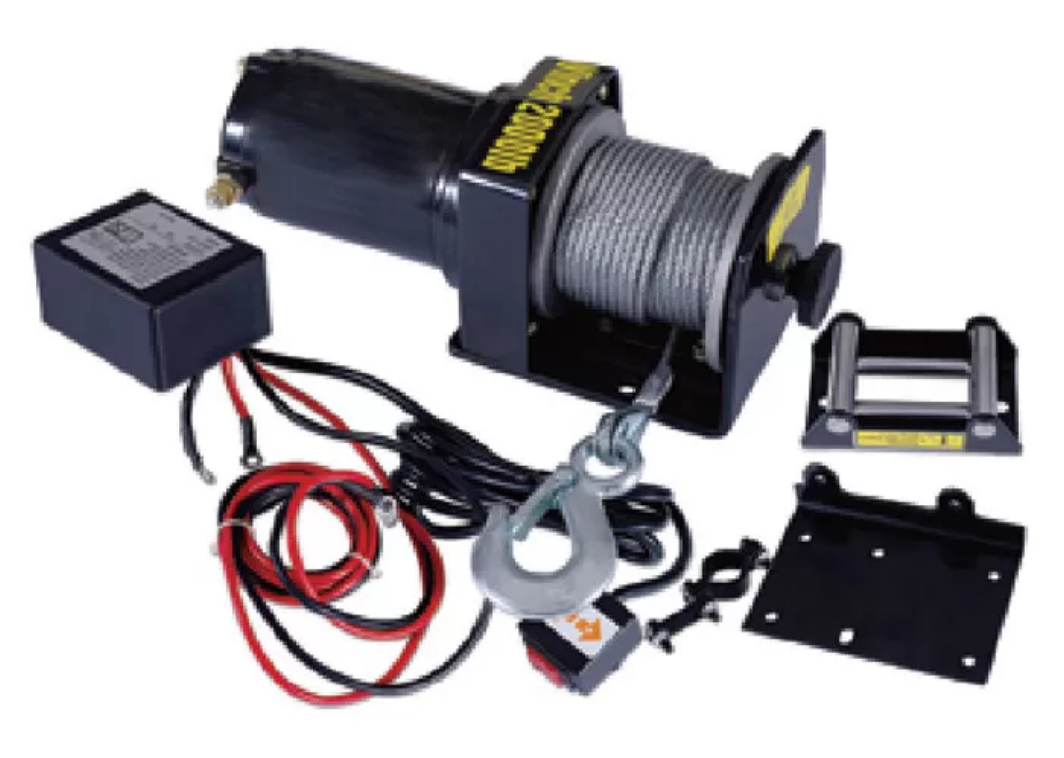

Model: |
EW2000C-1B(12V) |
|
Rated line pull: |
2000lb (907kg) single line |
|
Motor: |
0.7KW/0.9HP 12V, permanent magnet |
|
Gear reductions ratio: |
153:1 |
|
Drum Dimensions: |
φ1.24"x2.88” (φ31.5mmx73mm) |
|
Cable (Dia X L): |
φ5/32”x49’ (φ4mmx15m) |
|
Overall dimensions |
Overall dimensions11.2”x4.1"x4.1" (285x105x105mm) |
|
Mounting bolt pattern |
3.13" (79.5mm) |
|
N.W. / G.W. |
16kg / 17kg |
Features
1.Features an all-metal planetary gear train plus mechanical and dynamic brake.
2.Free spooling clutch with ergonomic control.
3.Sealed solenoids guarantee all-weather protection.
4.Sealed handle switch and 10 feet remote. Including roller fairlead and mounting plate.
Application
Apply to: For the boat trailer and other horizontal pulling applications that require the freewheeling features of ratchet-type winches etc.
Download
Apply to: Boat trailer, Warehouse, Building, Wharf, Etc.
