Specifications
|

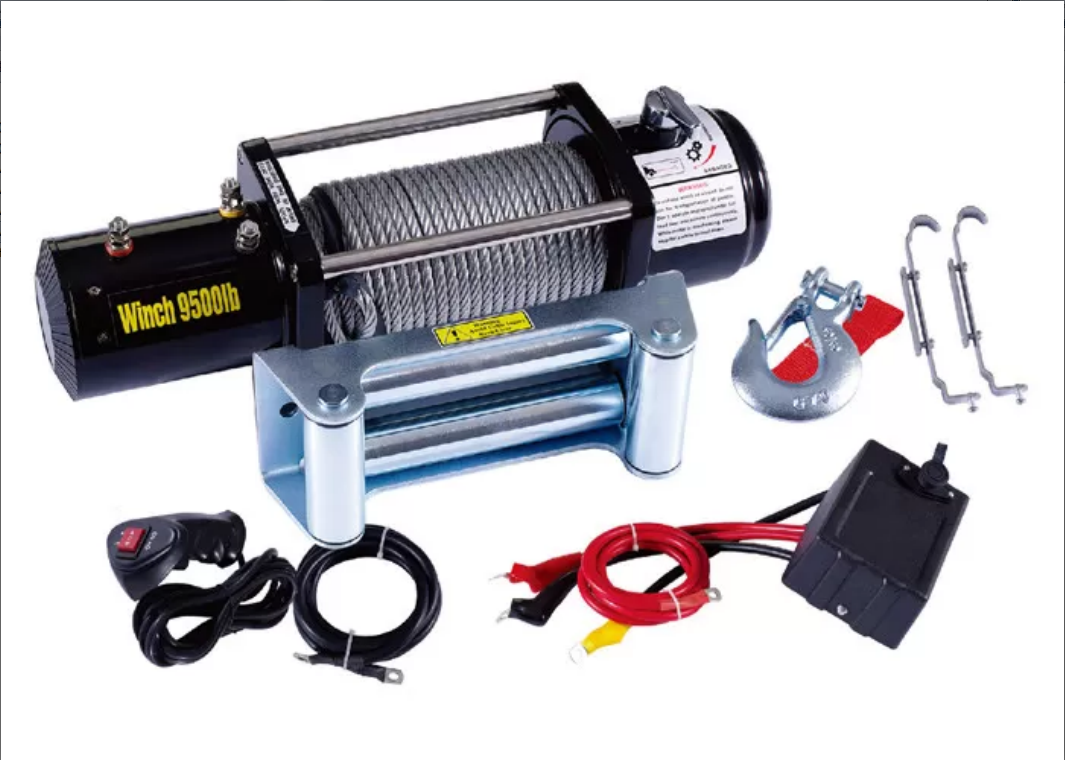

Model: |
EW9500C(12V/24V) |
|
Rated line pull: |
9500lb (4300kg) single line |
|
Motor: |
4.0KW/5.5HP 12V, Series Wound |
|
Control: |
Remote switch, 12ft (3.7m) lead |
|
Gear train: |
3 Stage Planetary |
|
Gear reductions ratio: |
195.4:1 |
|
Clutch: |
Sliding Ring Gear |
| Braking Action | Two-way, Automatic ln-The-Drum |
|
Drum Dimensions |
φ2.5"x8.8"(φ63.5mmx224mm) |
Features
Features an all-metal planetary gear train plus mechanical and dynamic brake. Free spooling clutch with ergonomic control. Sealed solenoids guarantee all-weather protection. Sealed handle switch and 10 feet remote. Including roller fairlead and mounting plate.
Application
Download
Apply to: Boat trailer, Warehouse, Building, Wharf, Etc.
